Browse

Browse is used to browse tags and insert the tag names to the spreadsheet to be used for cell binding in Snapshot or History.

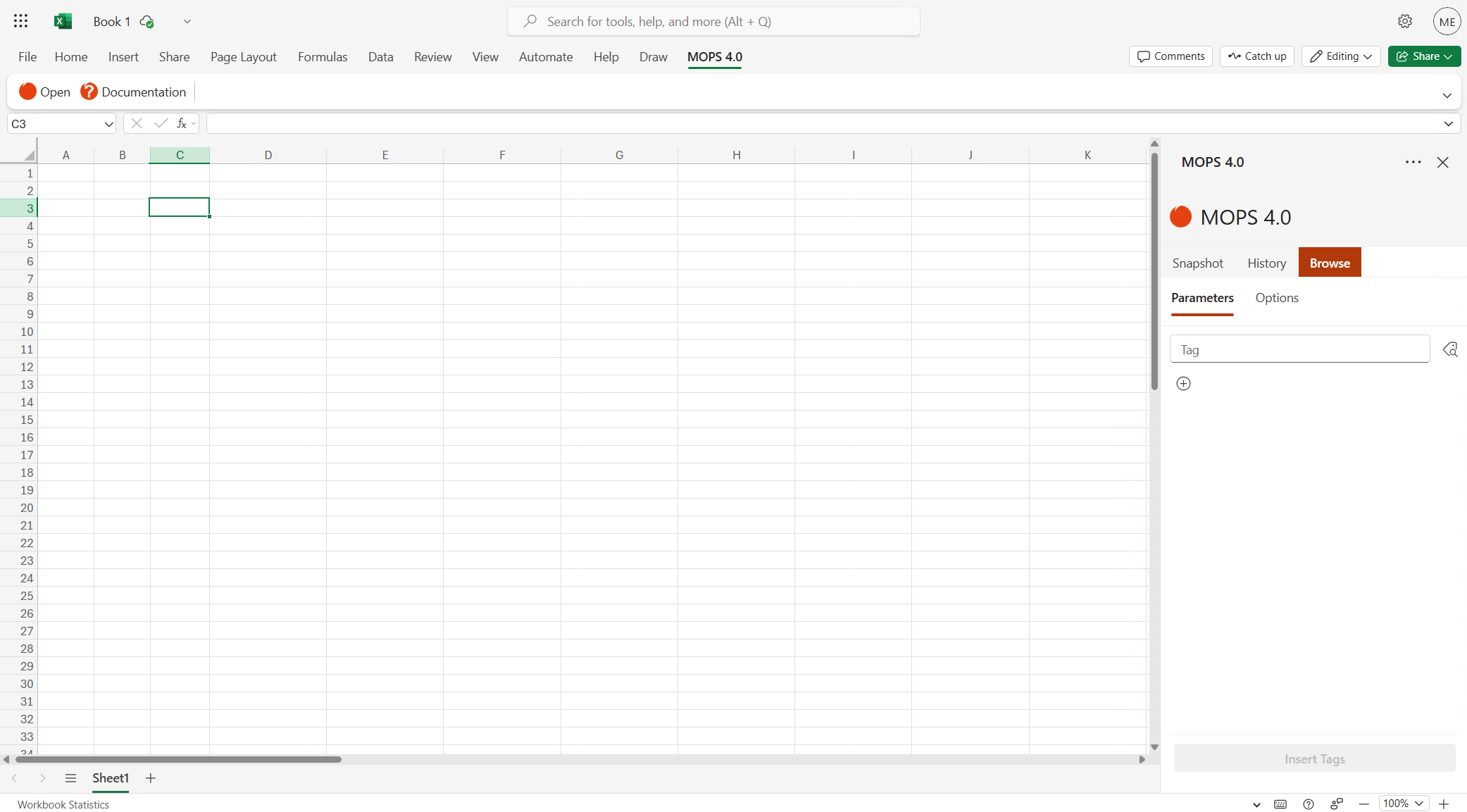

When selecting Browse in the task pane, it will look as follows:

Parameters

Tag

User can either type the tag name directly into the field and click the button to add more fields. User should only enter one tag per field. User can also search for tags by clicking on the to the right of the first field to open the MOPS 4.0 Tag Finder.

Search for the tags in the dialog and select the ones to be inserted and click Add.

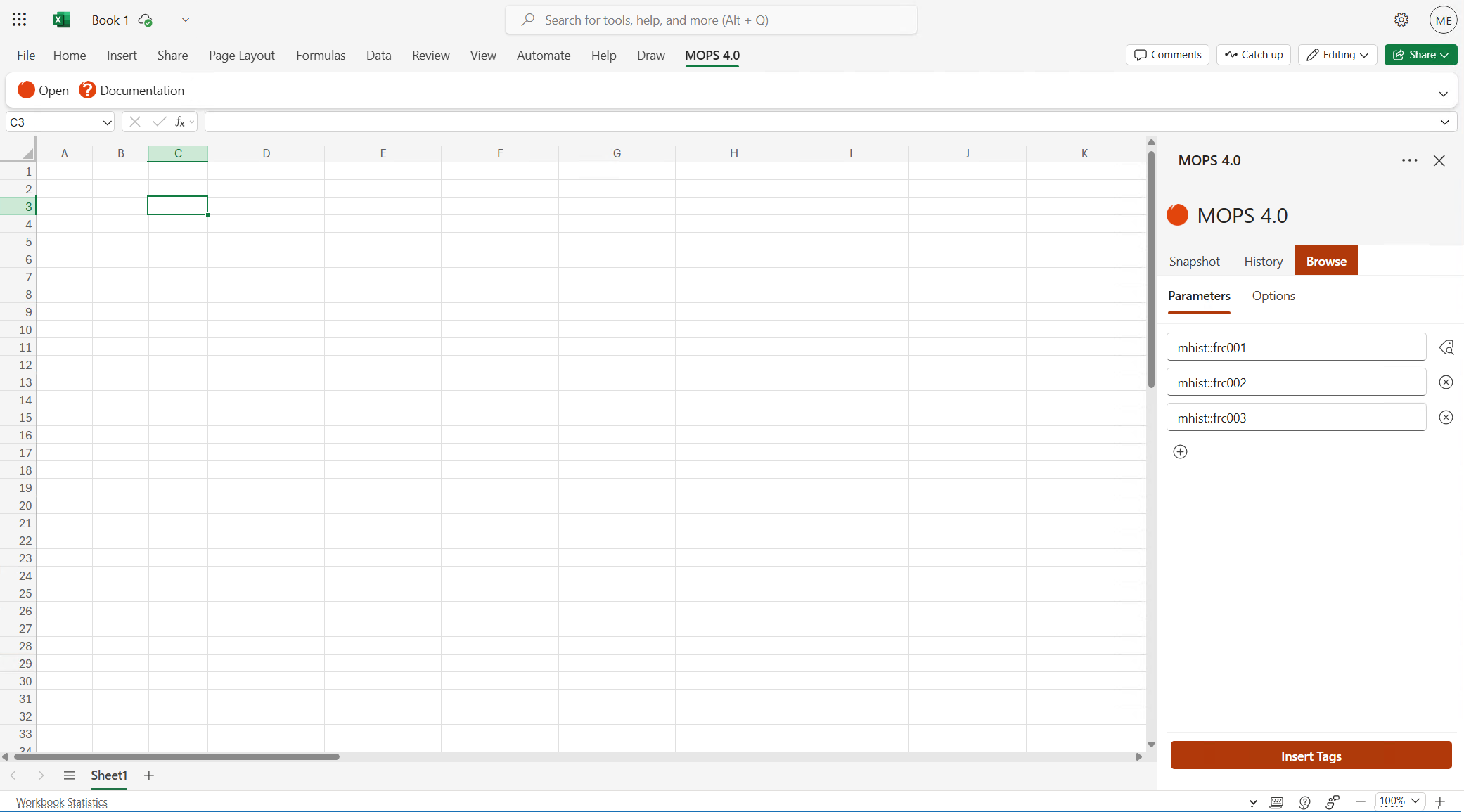

The dialog will close and the list will now be populated as shown in the following image.

User can search for more tags and expand the list, previous selected tags will not be replaced when a new search is done. Also, if the user selects a tag that is already in the list it will not be duplicated. User could also manually add tags before and after doing a search and the manually added tags will not be replaced. Tags can be removed by clicking on the button to the right of the field. The first row can never be removed.

Options

Orientation

This determines how the data set should be presented in the spreadsheet, either Horizontal or Vertical.

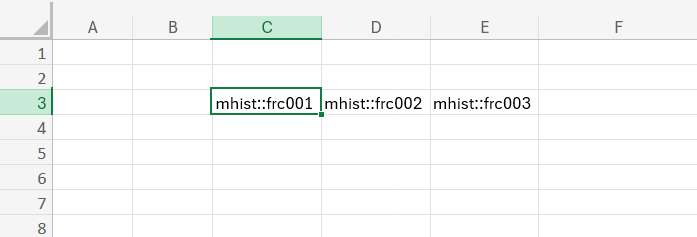

Horizontal presentation:

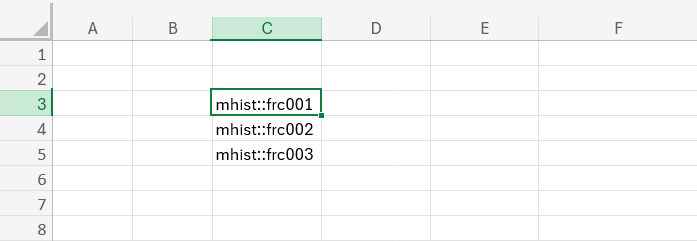

Vertical presentation:

Insert Tags

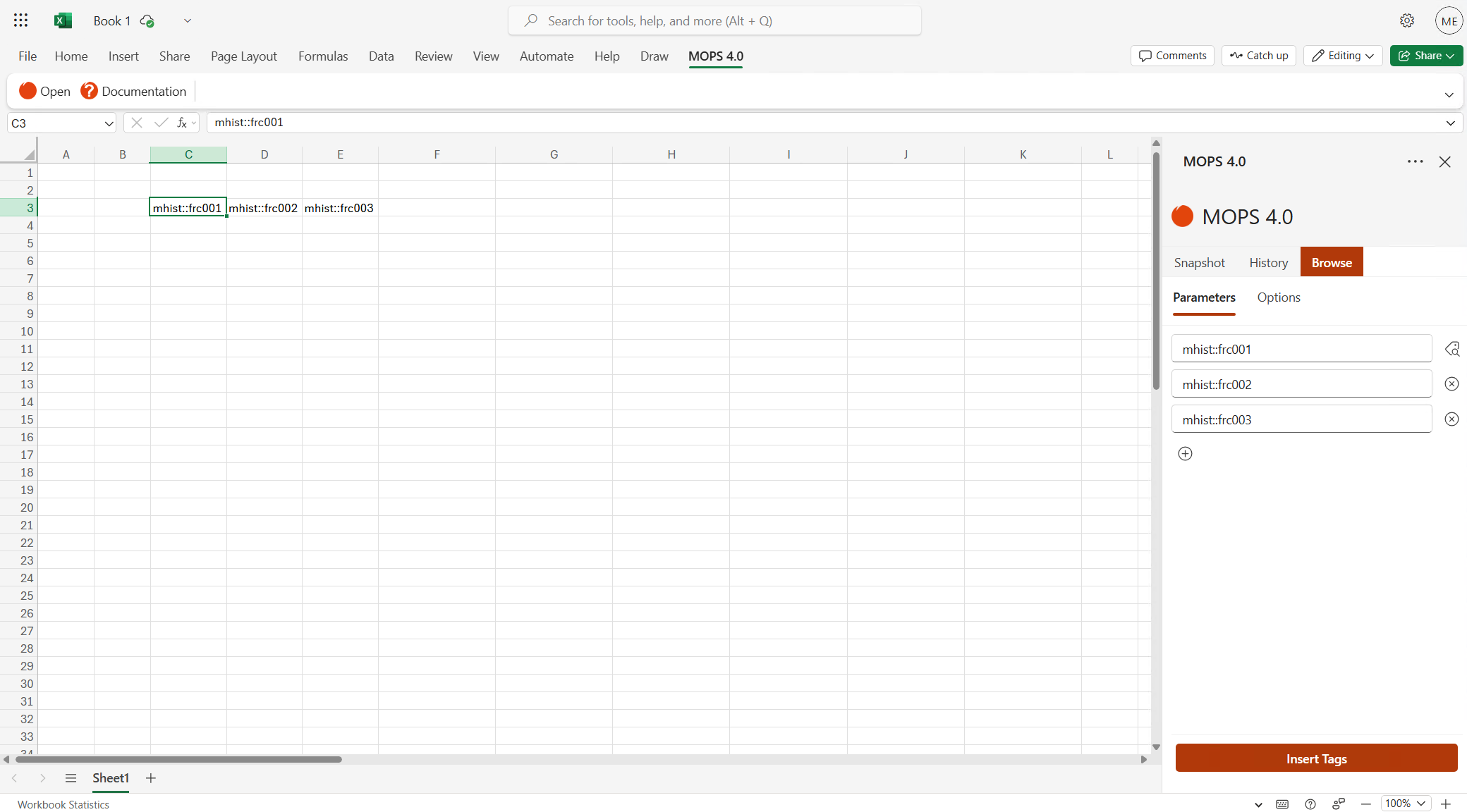

When clicking Insert Tags, all tags in the list will be added to the spreadsheet in separate cells as plain text.
